0.8-Ton Compact Agricultural Transporter

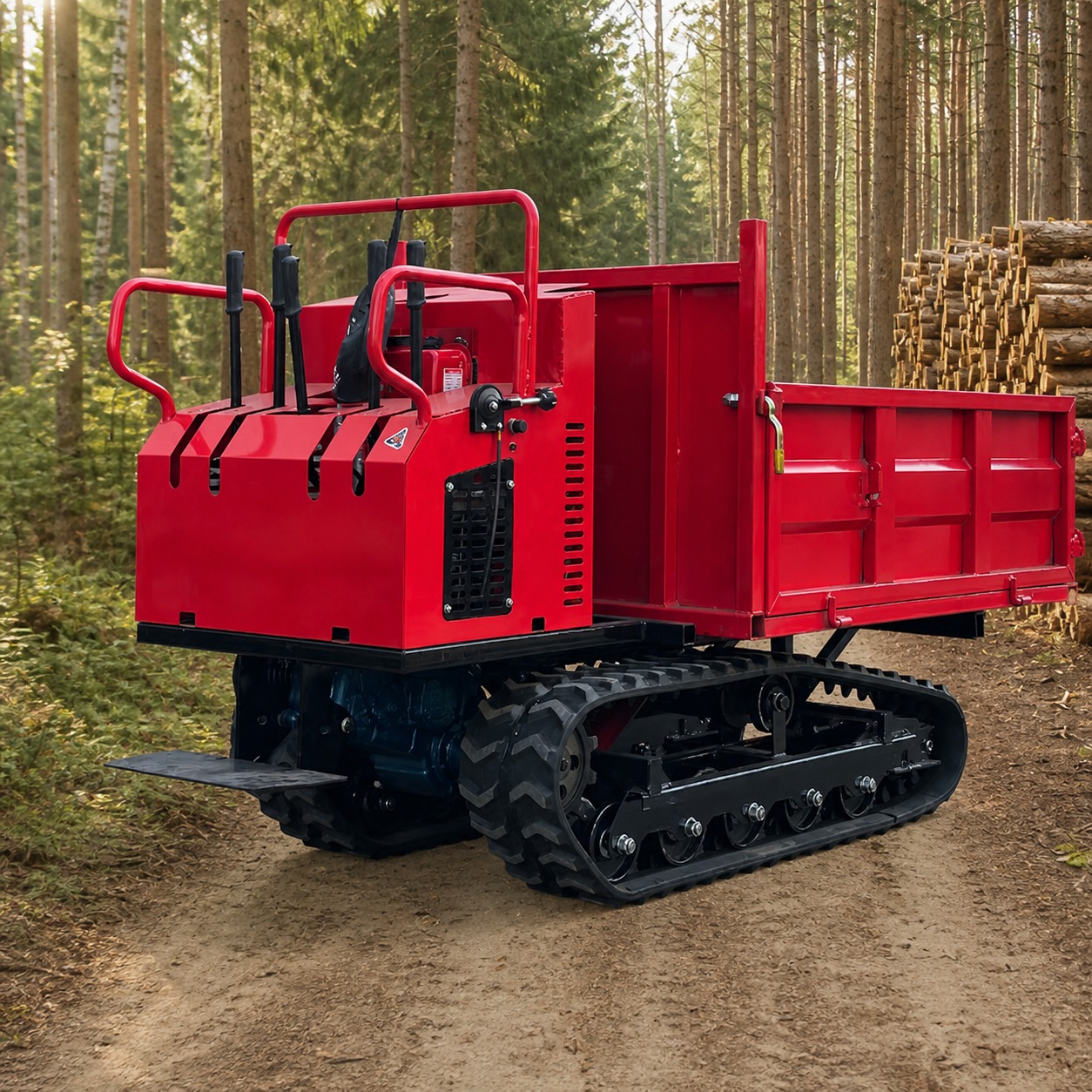

TT800 All-Terrain Tracked Dumper
Narrow crawler mobility and hydraulic dumping for orchards, hills, and difficult farm tracks
The TT800 is a compact diesel crawler transporter designed for moving fruit, fertilizer, tools, soil, feed, and farm materials across orchards, hillsides, muddy tracks, and confined rural worksites. Its narrow tracked chassis, lever steering, and hydraulic rear-tipping bed help reduce manual handling where wheeled vehicles have limited access.
800 kg
Rated Load — Level Ground
600 kg
Rated Load — Slope
Hydraulic rear tipping
Unloading
Technical Specifications
| Rated Load — Level Ground | 800 kg |
| Rated Load — Slope | 600 kg |
| Unloading | Hydraulic rear tipping |
| Overall Dimensions (L×W×H) | 2,050 × 800 × 1,040 mm |
| Cargo Bed (L×W×H) | 1,300 × 800 × 350 mm |
| Operating Weight | 486 kg |
| Engine | ETK-KD186F diesel |
| Starting | Electric start |
| Transmission | 3 forward + 1 reverse |
| Travel Speed | 5–8 km/h |
| Track Specification | 180 × 72 × 46 |
| Minimum Turning Radius | 1.2 m |
| Published Climbing Angle | Up to 45°* |
| Fuel Tank | 5 L |
Technical values are translated from a publicly indexed 0.8-ton listing matching this product class. The supplied 1688 short link does not expose its full technical sheet outside the mobile app. Capacity on a slope depends on gradient, surface, load distribution, braking, and operator practice. All dimensions, engine, capacity, climbing performance, safety equipment, and final configuration must be reconfirmed in the quotation and sales contract. *Never treat a published maximum angle as a guaranteed safe operating slope.
Key Features
- Rubber crawler tracks for soft, muddy, and uneven ground
- Narrow 800 mm chassis for orchard rows and restricted access
- Hydraulic rear-tipping cargo bed reduces manual unloading
- Three forward gears plus reverse for field maneuvering
- Compact diesel power unit with electric starting
- Steel cargo bed for produce, tools, fertilizer, feed, and loose materials
Typical Applications

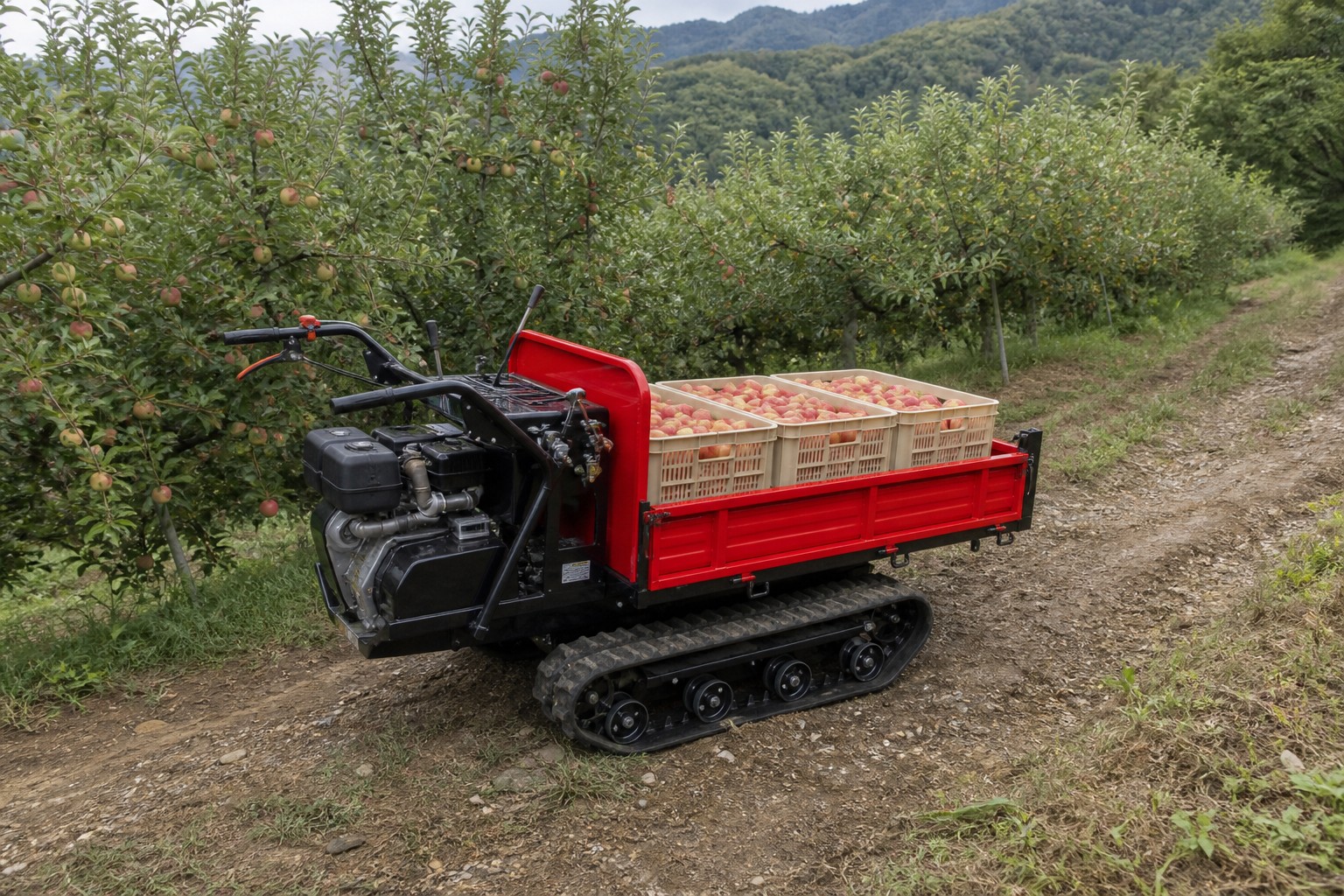

- Orchard harvest transport
- Hillside farm logistics
- Fertilizer and feed movement
- Greenhouse material handling
- Forestry and rural paths
- Landscape and small-site transport
Terrain & Load Matching
Configure the Transporter for Safe Farm Work
Tell us the payload, material, route width, maximum real slope, surface condition, travel distance, unloading method, quantity, and destination. We will confirm the engine, gearbox, tracks, bed, braking equipment, packing, and shipping plan.
Tell Us Your Transport Requirement
Share payload, route width, slope, terrain, cargo type, quantity, and destination port.
